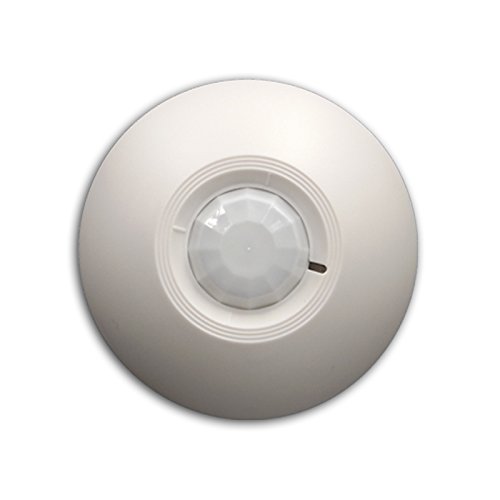

12V Wired PIR Motion Detector Alarm Infrared Sensor 360 Degree Detection Ceilling Mounted Installation Relay NO.NC Optional
12V Wired PIR Motion Detector Alarm Infrared Sensor 360 Degree Detection Ceilling Mounted Installation Relay NO.NC Optional looks good in design, features and function. The best function of this product is really simple to clean and control. The design and layout are very fantastic that make it really appealing and beauty. Many individuals feel attracted to purchase and utilize it. Every feature is developed to fulfill people require as its function too. It is stunning and ideal product for simple setup, upkeep, and control device.
| Asin | : | B075NH2JG6 |
| Category | : | Electronics |
| Color | : | |
| Brand | : | OUKU |
| Sales Rank | : |
Features 12V Wired PIR Motion Detector Alarm Infrared Sensor 360 Degree Detection Ceilling Mounted Installation Relay NO.NC Optional
Honestly, the product is extremely smart function, healthy and safety for users. 12V Wired PIR Motion Detector Alarm Infrared Sensor 360 Degree Detection Ceilling Mounted Installation Relay NO.NC Optional is very helpful to finish all user requires. The design is very light, appealing and elegant one. With the newest innovation, this product can meet all individuals expectation with fantastic function and function. It is easy to buy from the dedicated vendor. Individuals can get and acquire it online on the web by this site. The vendor is very useful to serve and send out the product on time shipment. It is extremely exceptional service for the top quality product. The one characteristic to consider about this product that there is no one felt trouble and dissatisfied with it. It works perfectly as the ads said previously.
Descriptions 12V Wired PIR Motion Detector Alarm Infrared Sensor 360 Degree Detection Ceilling Mounted Installation Relay NO.NC Optional
This is also an important factor to consider, as consumer self-confidence in certain companies over others dictates that more of their products have been purchased and used with satisfaction. You will surely have more security buying from one of these popular suppliers.After you have done all the search, there is one final thing to check out and perhaps use to complete your selection process. Suppose you have narrowed your decision right down to 3 products , but are uncertain how to pick the one to buy.
Features
1.Jumper optional for alarm delay 5 seconds/30 seconds
Insert the jumper: Alarm delay about 30 seconds(default)
Without jumper: Alarm delay about 5 seconds
2.The jumper for detection sensitivity: 1P/2P
Insert the jumper: Choose 1P, high sensitivity (default)
Without jumper: Choose 2P, low sensitivity
3.Normal closed (NC) and normal open (NO) Adjustable
Insert the jumper: Normal Closed (Default)
Without jumper: Normal Open
4.Jumper for controlling LED indicator
Insert the jumper: LED on when triggered(default)
Without jumper: LED off when triggered
5.Detection Distance adjustable
The jumper for detection distance:
5M: detection distance is about 5M
6M: detection distance is about 6M
7M: detection distance is about 7M
Specification
Working voltage: DC9V to 12V
Consumption current: less than 20mA
Low Pressure failure: Less than DC8.5V
Working temperature: -10 to +50
Centi Degree Installation way: Ceiling Mounted Appreance
Size: 106 x 36mm
Self-test time (Self Warm-up): about 60s LED
indicator: red Alarm
output: N.O/N.C optional
Connection capacity: DC12V, 300mA
Anti-tamper switch: N.C without relay output
Connection capacity: DC12V, 300mA
Note
1.it is Wiring Ceiling Mounted PIR Motion Detector, not wireless type. User must connect it to wired alarm control panel or other wired equipments via wiring connection.
2. Before buy, please make sure you are a proffessional wired detector buyer, who can understand the wiring terminals and know how to connect it to your wired equiments in order to avoiding wrong item ordered.
3. Please cover the top cover during test.
1.Jumper optional for alarm delay 5 seconds/30 seconds
Insert the jumper: Alarm delay about 30 seconds(default)
Without jumper: Alarm delay about 5 seconds
2.The jumper for detection sensitivity: 1P/2P
Insert the jumper: Choose 1P, high sensitivity (default)
Without jumper: Choose 2P, low sensitivity
3.Normal closed (NC) and normal open (NO) Adjustable
Insert the jumper: Normal Closed (Default)
Without jumper: Normal Open
4.Jumper for controlling LED indicator
Insert the jumper: LED on when triggered(default)
Without jumper: LED off when triggered
5.Detection Distance adjustable
The jumper for detection distance:
5M: detection distance is about 5M
6M: detection distance is about 6M
7M: detection distance is about 7M
Specification
Working voltage: DC9V to 12V
Consumption current: less than 20mA
Low Pressure failure: Less than DC8.5V
Working temperature: -10 to +50
Centi Degree Installation way: Ceiling Mounted Appreance
Size: 106 x 36mm
Self-test time (Self Warm-up): about 60s LED
indicator: red Alarm
output: N.O/N.C optional
Connection capacity: DC12V, 300mA
Anti-tamper switch: N.C without relay output
Connection capacity: DC12V, 300mA
Note
1.it is Wiring Ceiling Mounted PIR Motion Detector, not wireless type. User must connect it to wired alarm control panel or other wired equipments via wiring connection.
2. Before buy, please make sure you are a proffessional wired detector buyer, who can understand the wiring terminals and know how to connect it to your wired equiments in order to avoiding wrong item ordered.
3. Please cover the top cover during test.
